This article provides an overview of the Labeling Quality Control process in image projects using Supervisely’s dedicated functionality.
Last updated
Was this helpful?
The Quality Control functionality in Supervisely enables you to assign a random sample of annotated images to one or more reviewers for validation. Reviewers assess the correctness of assigned classes, object geometries, and applied tags. Upon completion, the system generates a summary report providing insights into the overall labeling quality of the project.
To start the extended Quality Control process in an image project, follow these steps:

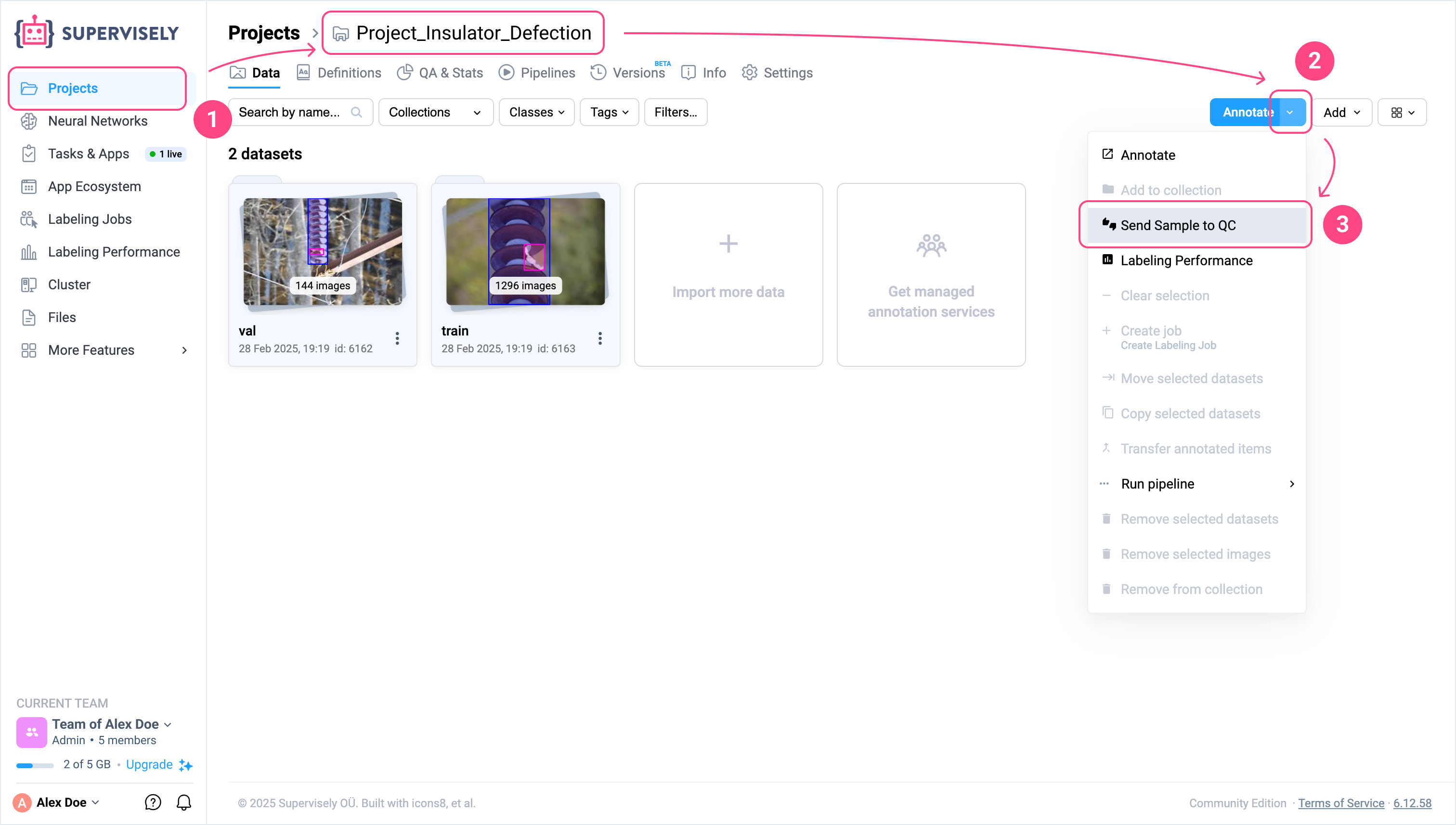

Open any Image Project from the Projects section.
In the Annotate button click the v arrow on the top right side of the screen.
In the dropdown menu, select Send Sample to QC.
The Create QC Task page will open in the Labeling Jobs section.

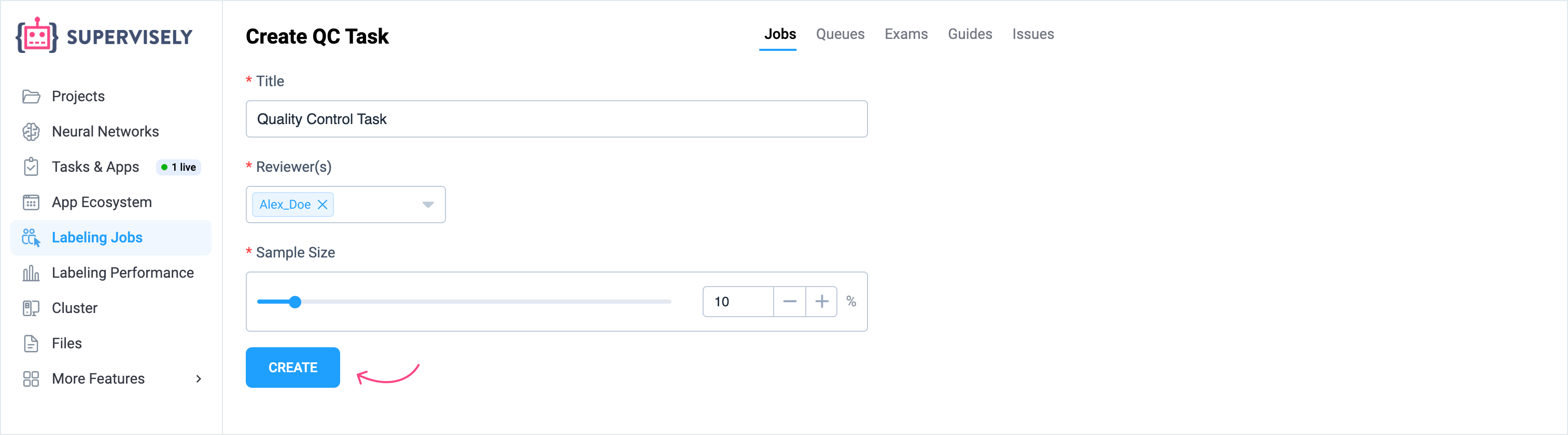

Specify the necessary settings: task name, one or more reviewers, sample size.
The sample size specifies the number of random images that will be taken from this project for validation.
If you select multiple reviewers, each of them will receive an equal portion of the sample, with random images assigned individually.
Click the Create button to start a new labeling task of the extended Quality Control type.

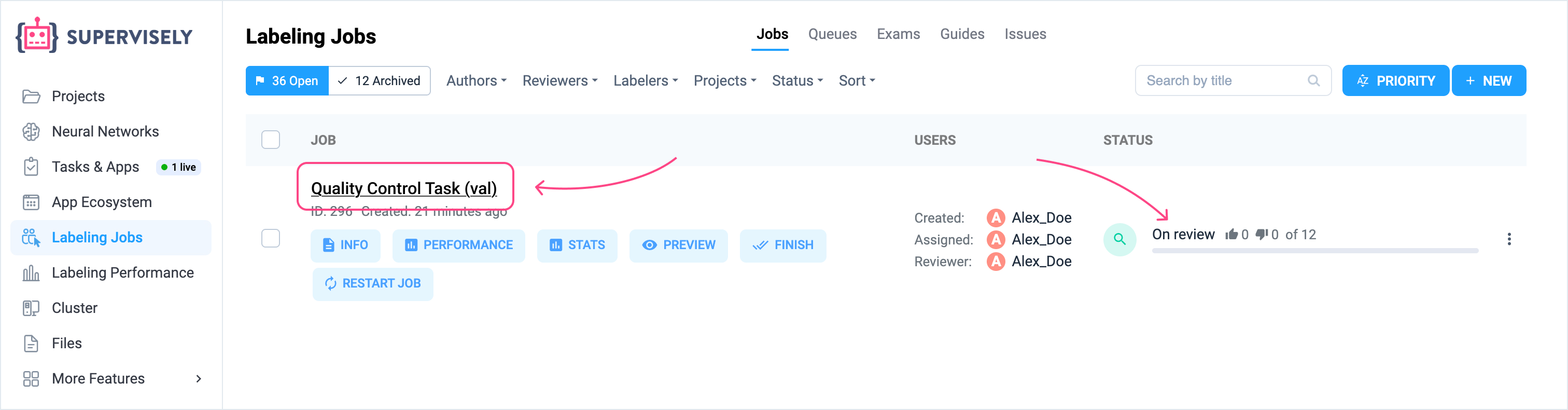

When we click the Create button, a Quality Control Task is immediately created with the status On Review.
Clicking on the title of the Quality Control Task opens the Labeling Tool with extended quality control functionality:
Extended Accept/Reject functionality;
Error Region.

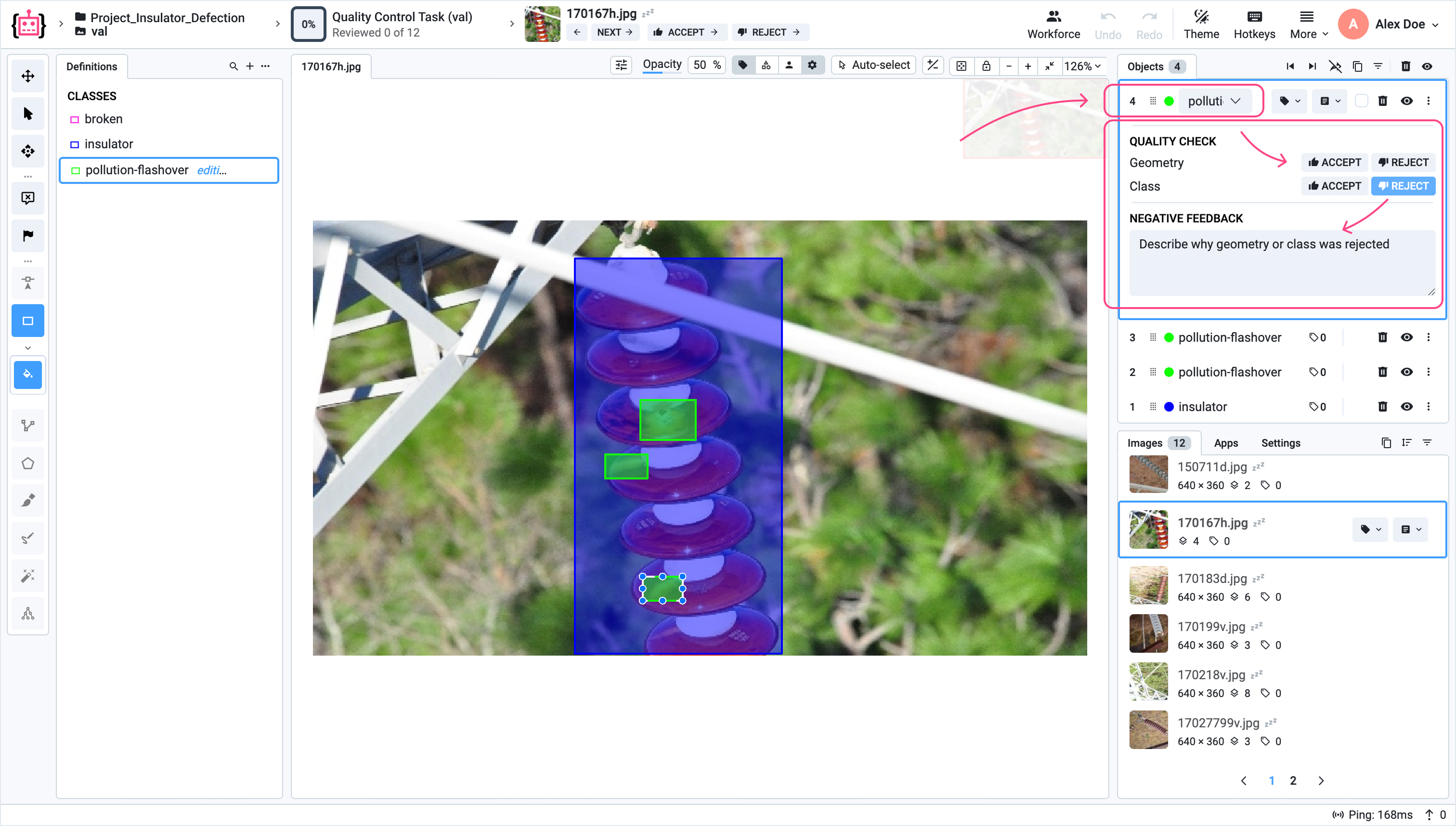

Each object includes an additional panel called Quality Check, which contains two buttons: Accept and Reject — used to evaluate both the geometry and the class of the object.
This functionality allows the reviewer to indicate exactly what needs to be fixed by the annotator.

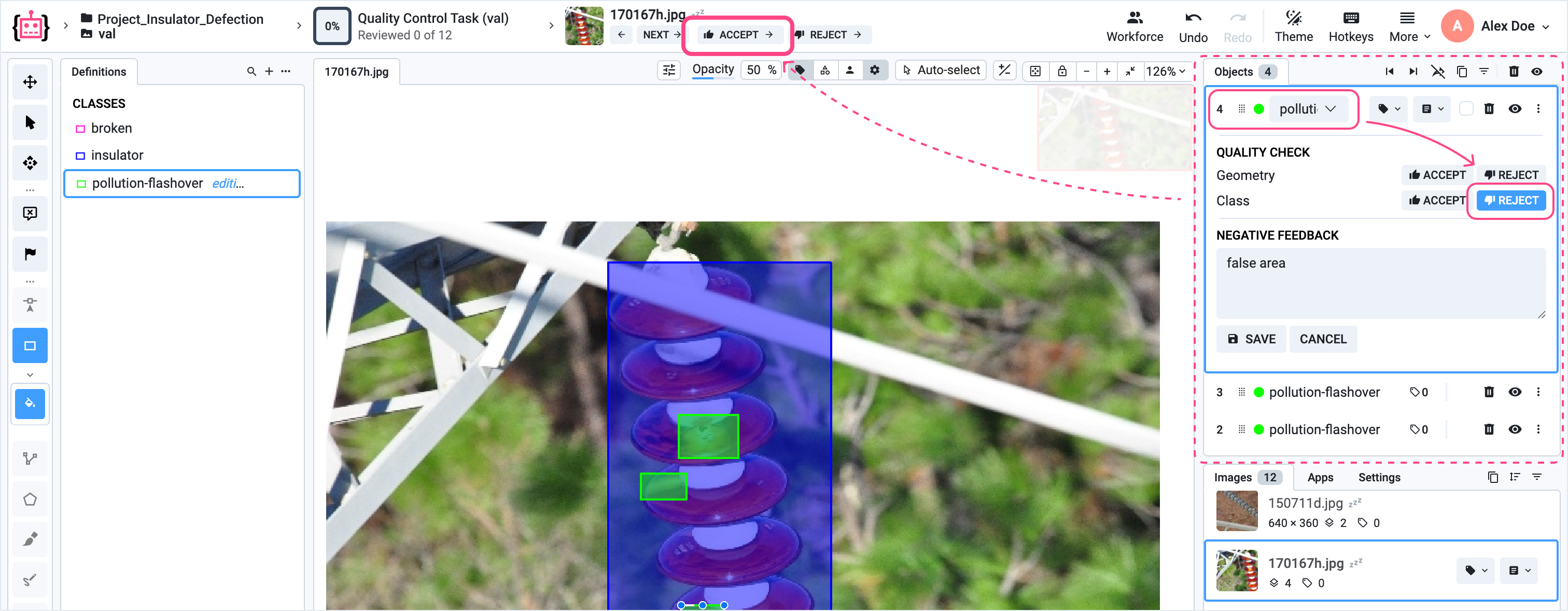

For example, a reviewer can reject one or more classes or geometries in the image, providing detailed feedback on what needs to be fixed. The final click on the main Accept or Reject button—applied to the entire image—determines the status of all remaining classes and geometries that haven't been individually reviewed.
This allows the reviewer to selectively reject only those elements that require changes, while all other classes and geometries will be automatically accepted when the reviewer clicks the main Accept button—and vice versa, if the reviewer accepts only specific elements and then clicks Reject, all others will be automatically rejected.

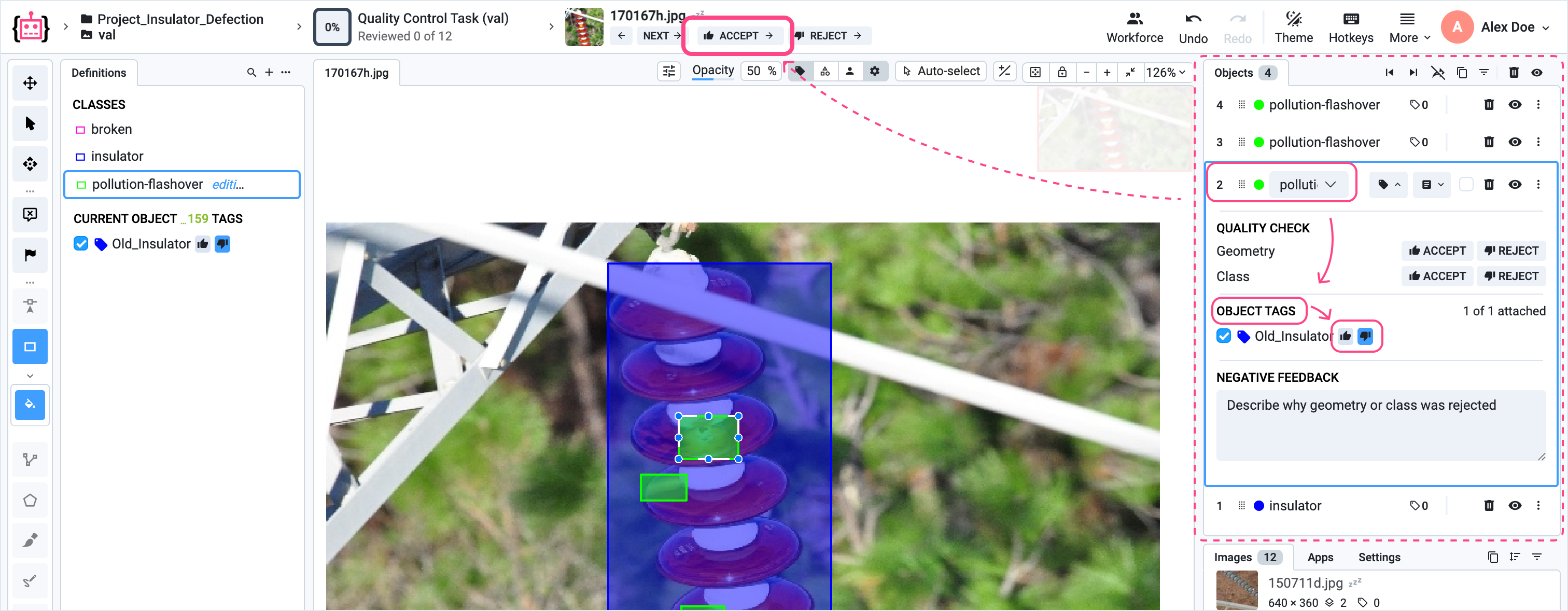

Tags have the same functionality.
All these buttons Accept and Reject, which relate to classes, geometries and tags, can also be unchecked, that is, the status can be removed.

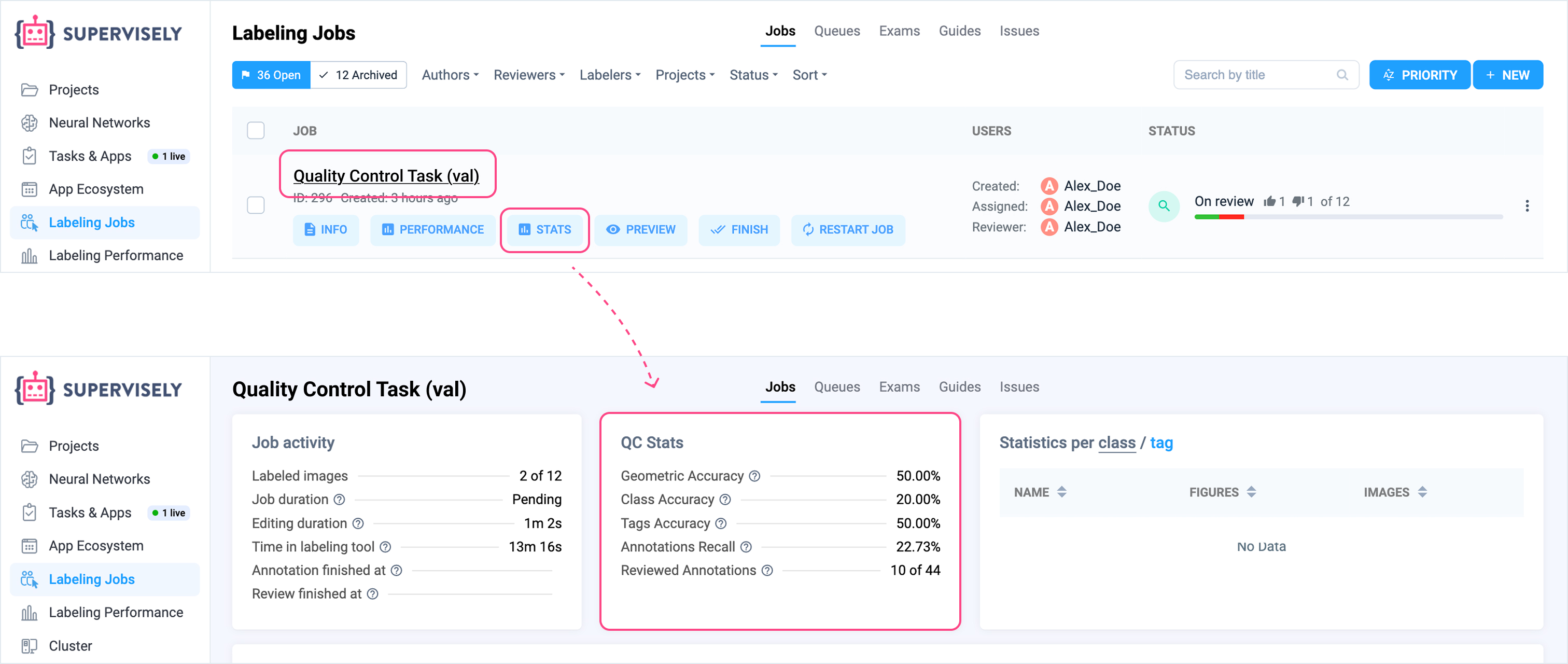

To view all the statistics for the extended functionality of the Quality Control Task, go to the Labeling Jobs section and click the Stats button under the specific task.
In the QC Stats section you will see the following metrics:
Geometric Accuracy - ratio of annotation objects with geometry marked as correct, divided by total number of reviewed objects;
Class Accuracy - ratio of annotation objects with class marked as correct, divided by total number of reviewed objects;
Tags Accuracy - ratio of tags marked as correct, divided by total number of reviewed tags;
Annotations Recall - ratio of reviewed annotation objects, divided by total number of annotation objects in the labeling job;
Reviewed Annotations - total number of reviewed and non-reviewed annotation objects.

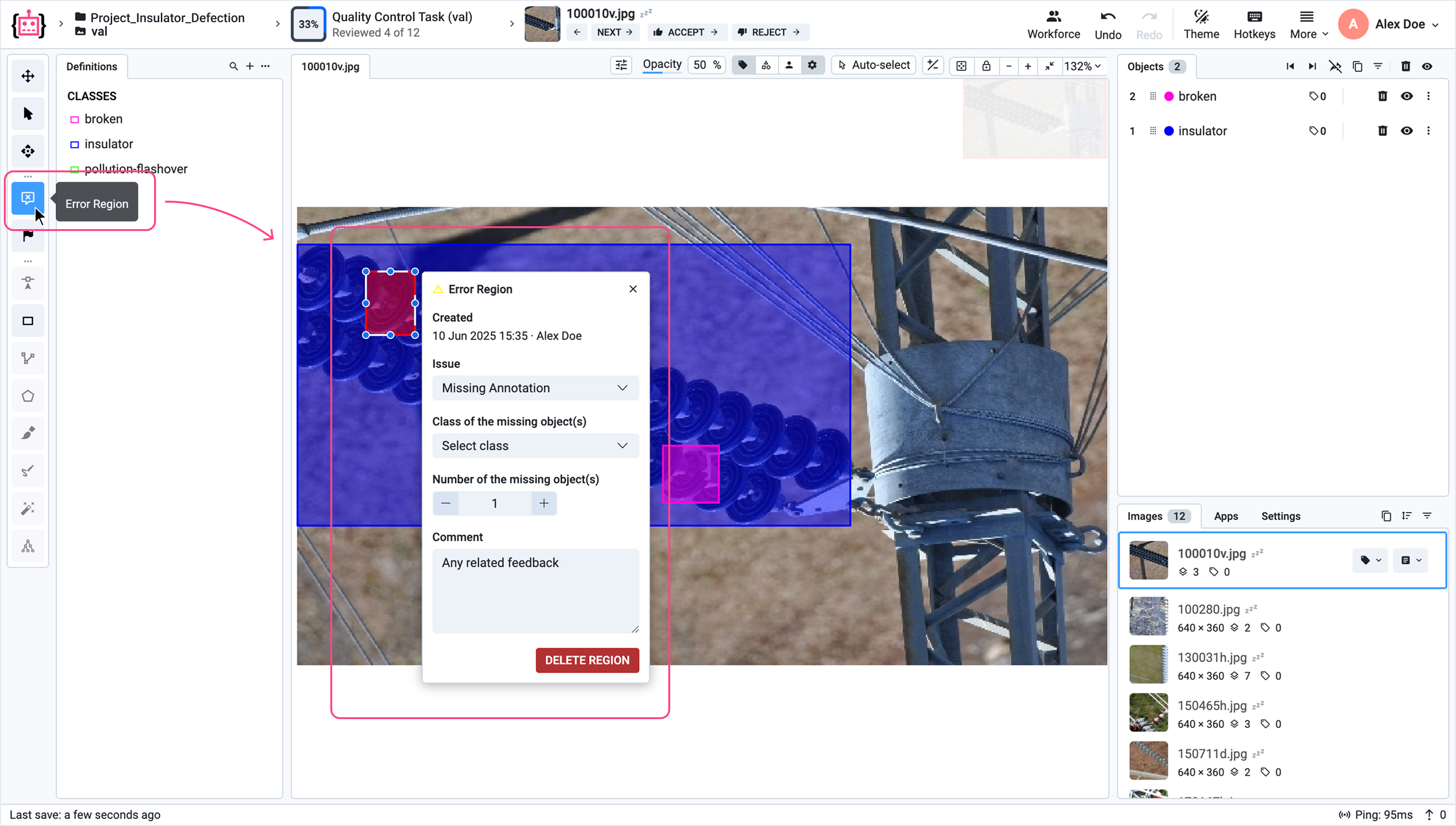

Error Region is a tool that can be used to mark problem areas on an image.
In the settings window you can specify the details of the Error Region:
An annotation or another element is missing,
Specify the class of the missing object (geometry),
The number of missing objects (geometry),
Leave an explanatory comment.
Technical details of the Error Region function:
Each Error Region label is saved as a hidden class $sly.error.region and is visible in the list of classes under the Definition tab of the project.
