Video Object Tracking

Introduction

Tracking is a computer vision task that lets us follow objects over time in a video. Tracking is useful for tasks such as counting people or vehicles, trajectory analysis, and behavior monitoring.

Supervisely provides a ready-to-use tracker that works with any detector available on the platform. We've integrated our enhanced BoT-SORT tracker into the platform as the most accurate and efficient solution for tracking by detection.

BoT-SORT Tracker

BoT-SORT is a modern tracker that we use as a base. It is a lightweight algorithm that works by the principle of tracking by detection:

1. Suppose, we have a detector (e.g. YOLO). We run it on each frame of the video to get bounding boxes of detected objects. These boxes are not linked between frames so far, they are just independent detections.

2. Then we apply a tracker — it links the detected objects between frames and assigns a unique ID for each object, resulting in trajectories of objects over time.

We chose BoT-SORT because it provides an excellent balance between speed and accuracy. In MOT17-style benchmarks BoT-SORT achieves strong tracking metrics while keeping high throughput.

Tracker	MOTA↑	IDF1↑	HOTA↑
BoT-SORT	80.6	79.5	64.6
ByteTrack	80.3	77.3	63.1
StrongSORT	79.6	79.5	64.4
OCSORT	78.0	77.5	63.2
MAATrack	79.4	75.9	62.0

Its main advantage is speed — e.g. ~38.4 FPS — which makes it suitable for real-time use while preserving good tracking quality.

Our enhancement: ReID with OSNet

In our implementation we integrated an improved ReID mechanism based on the OSNet x1_0 architecture instead of the original FastReID variant. This change lets the tracker use visual features of objects in addition to bounding box coordinates, which significantly improves tracking stability in challenging scenes. OSNet weights are available here: model zoo.

Additionally, we found some improvements in the original codebase and fixed minor bugs.

---

How to Use Tracker

Users have three ways to apply a tracker in different scenarios:

1. Apply NN to Video: the most convenient way is to use our Apply NN to Video app on the Supervisely platform.

2. Tracking via API: programmatic access through the python API - you send requests and receive predictions while tracking runs on the server.

3. Run Tracker Locally: use the tracker inside your own code or application with the Supervisely SDK on your machine.

In this guide we will cover all three options.

---

Option 1: Apply NN to Video

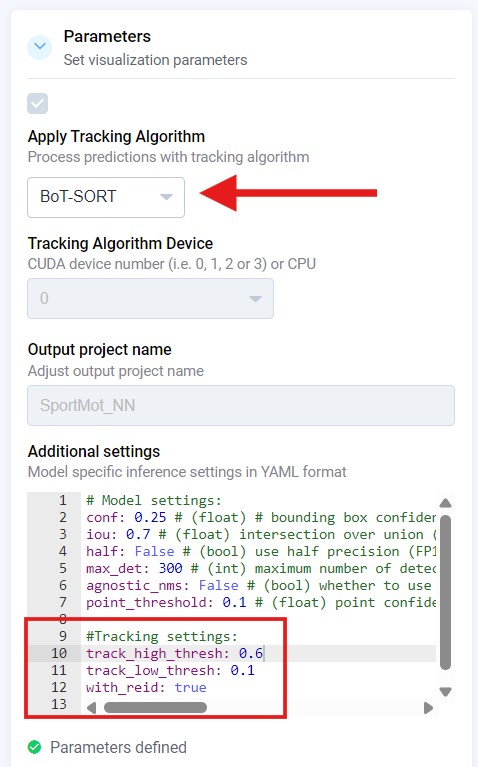

Launch Apply NN to Video app in the Supervisely platform, deploy a detection model, configure inference and tracking settings, and apply the model to your video project.

1. Deploy a model for Object Detection or Instance Segmentation.

2. Launch the Apply NN to Video app and wait until it is ready.

3. Select your deployed detection model and configure classes to predict.

4. Choose the algorithm BoT-SORT and select the device (CPU or GPU).

5. In advanced settings you can configure hyperparameters for tracking (see Hyperparameter Configuration).

Tracking settings

Example parameters:

device: 'cuda'
track_high_thresh: 0.6
track_low_thresh: 0.1
new_track_thresh: 0.7
match_thresh: 0.8
with_reid: true
appearance_thresh: 0.25
min_box_area: 10
track_buffer: 30

Read more about applying neural networks in Supervisely Serving Apps.

Option 2: Tracking via API

This section is based on the Prediction API, check it for more details.

This option is intended for developers who want to control tracking via the API. In this workflow you do not run the tracking code locally — you call the Prediction API and receive predictions from the server.

Steps:

1. Deploy a model for detection. You can also deploy it via API (see Deploying via API).

2. Connect to the model using api.nn.connect(). If you deployed the model via API, you already have the model object.

3. Predict with model.predict() with tracking=True argument. You can pass additional tracker settings in tracking_config.

Example:

import supervisely as sly

# API connection
api = sly.Api()
model = api.nn.connect(task_id=YOUR_TASK_ID)

# Video tracking
predictions = model.predict(
    video_id=42,
    start_frame=0,
    num_frames=100,
    tracking=True,
    tracking_config={
        "tracker": "botsort",
        "device": "cuda",
        "track_high_thresh": 0.6,
        "track_low_thresh": 0.1,
        "new_track_thresh": 0.7,
        "match_thresh": 0.8,
        "with_reid": True,
        "appearance_thresh": 0.25,
        "proximity_thresh": 0.5
    }
)

# Processing results
for pred in predictions:
    frame_index = pred.frame_index
    annotation = pred.annotation
    track_ids = pred.track_ids
    print(f"Frame {frame_index}: {len(track_ids)} tracks")

Visualize

You can visualize the results after receiving a Prediction, use the visualize() function to draw predictions on the input video and save the result. Read more in the Visualization Settings section.

from supervisely.nn.tracker.visualize import visualize

video_path = "path_to_your_video.mp4"
output_path = "output.mp4"

visualize(predictions, video_path, output_path)

Option 3: Run Tracker Locally

This approach allows you to use the tracker inside your own code or application using the Supervisely SDK on the same machine/hardware, without sending requests to the server.

First, install the Supervisely SDK with tracking requirements:

pip install supervisely[tracking]

You can apply the tracker directly to annotations that you obtain from a detector.

Input parameters frames and annotations:

• frames — a list of numpy arrays representing video frames.

• annotations — a list of sly.Annotation, where each element is the annotation for the corresponding frame. See the Supervisely docs for the Annotation object. The output is a VideoAnnotation object.

There are two ways to use the tracker with SDK:

• Method 1: update() — processes frame by frame and is convenient for online/streaming usage.

• Method 2: track() — processes the whole sequence or chunks and returns a VideoAnnotation in one call.

Method 1: Predictions

from supervisely.nn.tracker import BotSortTracker
import supervisely as sly

# Data preparation (assuming you have frames and annotations)
frames = [...]  # list of numpy arrays
annotations = [...]  # list of sly.Annotation

# Tracker initialization
tracker = BotSortTracker(settings={
    "track_high_thresh": 0.6,
    "track_low_thresh": 0.1,
    "new_track_thresh": 0.7,
    "with_reid": True
})

tracker.reset() # reset the tracker, if necessary

for frame, annotation in zip(frames, annotations):
    matches = tracker.update(frame, annotation)

    # matches contains detection -> track correspondences
    for match in matches:
        track_id = match["track_id"]
        label = match["label"]
        print(f"Object {label.obj_class.name} assigned track ID: {track_id}")

# After applying .update() method, tracker accumulates video annotations
video_annotation = tracker.video_annotation

Method 2: Video Annotations

from supervisely.nn.tracker import BotSortTracker
import supervisely as sly

# Data preparation (assuming you have frames and annotations)
frames = [...]  # list of numpy arrays
annotations = [...]  # list of sly.Annotation

# Tracker initialization
tracker = BotSortTracker(settings={
    "track_high_thresh": 0.6,
    "track_low_thresh": 0.1,
    "new_track_thresh": 0.7,
    "with_reid": True
})

video_annotation = tracker.track(frames, annotations)

Output structure

matches is a list of dictionaries where each dictionary contains the correspondence between a track_id and a sly.Label (part of the annotations structure that contains information about a single detected object: bbox, class, score).

Example structure:

# Example contents of matches
matches = [
    {
        "track_id": 1,
        "label": sly.Label(...)
    },
    {
        "track_id": 2,
        "label": sly.Label(...)
    }
]

Visualize

To visualize the results after receiving a Video annotation, use the same visualize() function to render the VideoAnnotation into a result video.

from supervisely.nn.tracker.visualize import visualize

visualize(video_annotation, video_path, output_path)

The visualization video will be saved in the output_path.

---

Visualization Settings

Visualization example

You can visualize the tracker's results with the visualize() function. It accepts either a list of predictions (in case you use the Prediction API) or VideoAnnotation (from the tracker), the path to your input video, and the path to save the output video.

Additional options:

• show_labels: Draw per-object labels (track IDs).

• show_classes: Draw class names for each object.

• show_trajectories: Render object trajectories across frames.

• box_thickness: Bounding-box line thickness in pixels.

• color_mode: Use default color palette. If color_mode=True, ignore annotation colors and use the default color palette. If color_mode=False, the visualizer tries to use colors from annotations when possible.

---

Metrics Evaluation

Input for metrics evaluation: the function accepts two sly.VideoAnnotation objects — predicted annotations (video_ann_pred) and ground truth annotations (video_ann_true).

If you have ground truth data in the form of video annotations, you can evaluate the tracker’s performance using the evaluate function.

First, install Supervisely SDK with tracking requirements:

pip install supervisely[tracking]

Or install the necessary packages manually:

pip install motmetrics
pip install git+https://github.com/JonathonLuiten/TrackEval.git

To calculate metrics pass predicted annotations and ground truth annotations to the evaluate function:

from supervisely.nn.tracker.calculate_metrics import evaluate

metrics = evaluate(video_ann_pred, video_ann_true)

metrics will contain json in the following format:

{
    "precision": 0.8413143658585454,
    "recall": 0.6863354037267081,
    "f1": 0.755963633090287,
    "avg_iou": 0.9612887407707322,
    "true_positives": 4199,
    "false_positives": 792,
    "false_negatives": 1919,
    "total_gt_objects": 6118,
    "total_pred_objects": 4991,
    "mota": 0.5562275253350768,
    "motp": 0.05367845372475279,
    "idf1": 0.4922135205689081,
    "id_switches": 8,
    "fragmentations": 3,
    "num_misses": 1917,
    "num_false_positives": 790,
    "iou_threshold": 0.5
}

The output includes several groups of metrics:

Basic Detection Metrics

• Precision — ratio of correct detections among all detections.

• Recall — ratio of detected objects among all ground truth objects.

• F1 — harmonic mean of precision and recall.

• Average IoU — average overlap between predicted and true bounding boxes.

MOT (Multiple Object Tracking) Metrics

• MOTA (Multi-Object Tracking Accuracy) — overall accuracy, combining misses, false positives, and ID switches.

• MOTP (Multi-Object Tracking Precision) — how precisely the tracker matches predicted and true positions.

• IDF1 — measures how well object identities are preserved across frames.

• ID Switches — number of times the tracker assigned the wrong ID to the same object.

• Fragmentations — how often a trajectory is broken into parts.

• Misses / False Positives — counts of missed objects and false alarms.

Count Metrics

• True Positives / False Positives / False Negatives — raw counts of detection outcomes.

• Total GT Objects / Predicted Objects — number of objects in ground truth and predictions.

These metrics give both a high-level and detailed view of how well the tracker performs.

---

Hyperparameter Configuration

Core Tracking Parameters

Parameter	Default	Description
track_high_thresh	0.6	High confidence threshold for detections. Detections with confidence above this value are used for primary association
track_low_thresh	0.1	Low confidence threshold. Detections between low and high thresh are used for secondary association
new_track_thresh	0.7	Threshold for creating new tracks. Detections with confidence above this threshold can become new tracks
match_thresh	0.8	IoU threshold for matching detections and tracks. Higher values mean stricter matching conditions
track_buffer	30	Number of frames a lost track remains in memory
min_box_area	10.0	Minimum bounding box area for tracking

ReID (Appearance) Parameters

Parameter	Default	Description
with_reid	true	Enable/disable ReID mechanism for enhanced association
appearance_thresh	0.25	Threshold for appearance similarity. Lower values mean stricter matching
proximity_thresh	0.5	Proximity threshold for ReID features

Algorithm Configuration

Parameter	Default	Description
fuse_score	false	Whether to fuse detection and ReID scores
ablation	false	Enable ablation study mode for research purposes

Camera Motion Compensation

Parameter	Default	Description
cmc_method	"sparseOptFlow"	Camera motion compensation method. Options: "orb", "sift", "ecc", "sparseOptFlow"

Performance & Hardware

Parameter	Default	Description
device	"auto"	Computing device ("cuda", "cpu", "auto"). Auto uses CUDA if available
fp16	false	Enable half-precision (FP16) computation for faster inference
fps	30	Video FPS for correct track_buffer calculation
