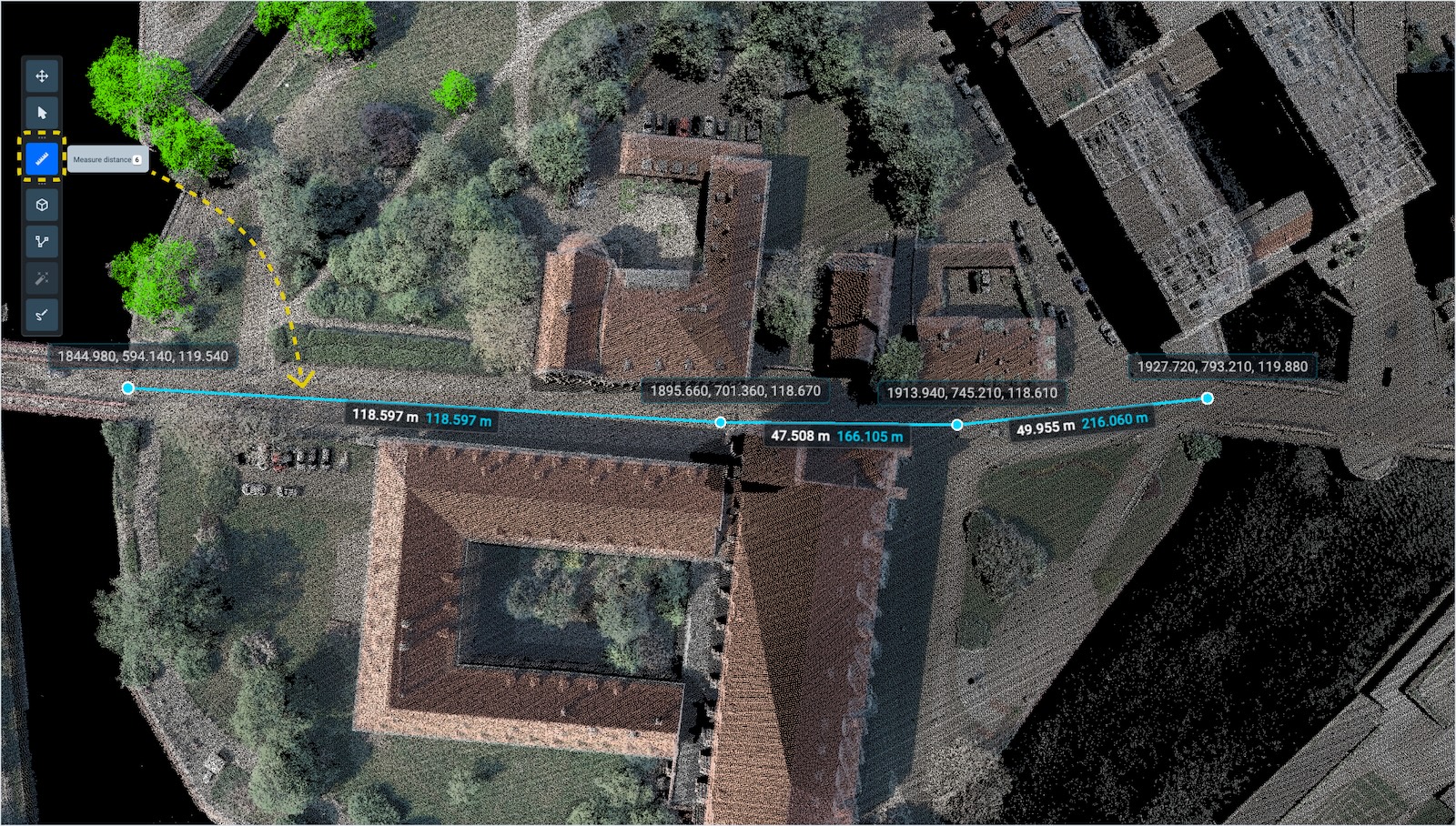

3D Point Cloud and Episodes

This article about the new labeling interface for 3D Point Clouds in Supervisely that introduces a significantly enhanced workflow, offering extended functionality and improved usability.

The 3D Point Cloud labeling tool in Supervisely is designed for visualizing, annotating, and managing complex 3D data collected from sensors such as LiDAR and RADAR. It supports key tasks like object detection and segmentation across static scenes and sequential episodes, making it ideal for applications like autonomous driving.

The latest version introduces a completely redesigned interface that unifies both single-frame and episode-based workflows. It brings a more streamlined and powerful experience with features such as:

  • Optimized visualization and interaction with extremely large point clouds — up to 50 million points per frame — enabling smooth annotation and review even for high-resolution lidar scans.

  • AI-assisted tools for faster and more accurate labeling

  • Auto Labeling with Cuboid Tool

  • Interactive 3D Object Detection

  • 3D Point Cloud Ground Segmentation

  • Cuboid Tracking

  • Synchronized 2D–3D annotation using photo context images

  • Timeline navigation for working with sequential frames

  • Flexible, resizable UI layout tailored to your workflow

  • Definitions Panel for convenient class management and quick object editing

  • Advanced settings for customizing visual styles and display preferences

Together, these enhancements provide an integrated and efficient workspace for working with large-scale 3D datasets.

Difference between 3D Point Cloud and 3D Point Cloud Episodes:

3D Point Cloud: A static representation of a scene captured at a single moment in time.

3D Point Cloud Episodes: A dynamic representation consisting of multiple point clouds collected over time, enabling the analysis of movement and change in the scene.

3D AI Assistant

Supervisely's 3D AI assistant is a universal tool for automating 3D point cloud labeling. It covers all types of labeling scenarios for 3D point clouds: 3D object detection, ground segmentation, 3D cuboid tracking, transfer of 2D annotations from photo context images to original 3D point clouds. This tool is class-agnostic - it means that it works with any type of objects regardless of their shape and point density.

Automatic cuboid adjustment

  • Automatically adjusts manually created cuboids.

To use the Auto Labeling, follow these steps:

  1. Open the Auto Labeling tab. Toggle the Highlight object by click option to enable it.

  2. Make sure a Point Cloud view panel is active or click on one of the 3D view panels to activate it (Top, Side, Front, Perspective).

  3. Select the Cuboid tool from the toolbar or press the 3 key on your keyboard to activate the Cuboid tool.

  4. Click on a target object in the 3D scene.

  5. Let the AI assistant adjust the cuboid for selected object.

  • The Auto Labeling tool will detect the full object in the point cloud and fit a cuboid around it using its internal logic.

  • This minimizes manual adjustment and ensures accurate object boundaries.

  1. Continue labeling more objects.

  • The labeled object will now be selected automatically.

  • The Select Figure tool becomes active by default, while the Cuboid auto-labeling tool remains enabled in the background.

  • To label the next object, press Space to deselect the current object — the Cuboid tool reattaches to your cursor and you’re ready to click on the next group of points.

This loop allows for rapid labeling of multiple objects in sequence with minimal effort.

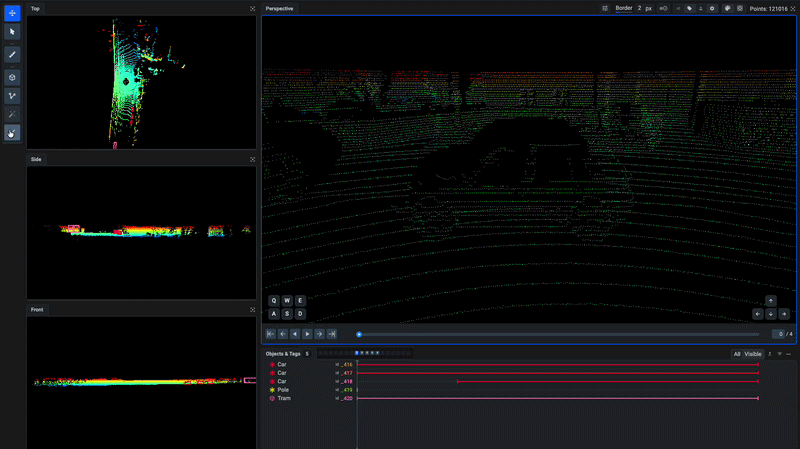

Interactive 3D Object Detection with Smart Tool

Nowadays interactive data labeling approach is getting more and more recognition. Inspired by success of Meta's Segment Anything Model - interactive model for labeling of images, we decided to develop interactive model for labeling of 3D point clouds. 3D AI assistant proposes simple method of interaction with user: user circles the object - model predicts 3D bounding box for the circled area. Unlike many other 3D object detection models, 3D AI assistant does not require any finetuning in order to perform well on unseen data - it can detect any objects in any environment.

Select Smart tool in left side bar and circle target object. It will automatically generate a 3D cuboid around the selected object.

3D Point Cloud Ground Segmentation

Ground segmentation is one of the most important parts of 3D environments perception. 3D AI assistant allows to do it in fast and convenient way.

  • Detects and annotates the ground level in the 3D scene.

  • Fits a horizontal surface through point clusters and creates a flat figure with a ground class.

  • Useful for scene normalization and filtering.

Click on auto labeling tab and press "Ground segmentation".

3D AI assistant proposes several ground segmentation algorithms: Patchwork++, GndNet, quantile filtering, ground plane fitting, grid-based slope filtering - user can select the one which fits current dataset best.

In order to find out which ground segmentation algorithm fits user's data best, user can preview performance of each algorithm in app UI:

Patchwork++ is a self-adaptive, non-learning-based approach for 3D point cloud ground segmentation. Patchwork++ segments ground points in 3D point clouds by dividing the space into concentric square rings and performing progressive plane fitting from the center outward. It improves upon the original Patchwork by introducing adaptive plane modeling and better handling of non-flat terrain using hierarchical spatial partitioning and local elevation statistics. Patchwork++ also includes mechanisms to handle sparse or occluded regions and improves computational efficiency, making it suitable for real-time applications in autonomous driving and robotics.

GndNet is a neural network architecture for ground plane estimation, trained on the Semantic KITTI dataset. GndNet first performs point cloud discretization into a 2D grid, then converts the point cloud into a sparse pseudo-image via a pillar encoding feature network, and finally processes this pseudo-image via a 2D convolutional encoder-decoder network to generate a high-level representation of ground elevation per cell.

Ground plane fitting divides the input point cloud into several segments and detects ground points in each of them. To find ground points, it extracts sets of points with low Z-coordinate values and uses them to estimate an initial plane model of the ground surface. For each point in a segment, the distance to its orthogonal projection on the candidate plane is computed. This distance is compared to a user-defined threshold to determine whether the point belongs to the ground. Selected ground points are then used as seeds for a refined plane estimation, repeating the process iteratively. In the final step, ground points from all segments are concatenated to form the full ground plane.

Quantile filtering is a simple algorithm that separates ground from non-ground points based on the probability distribution of their Z-coordinates (height). The optimal quantile value can be selected using a ground segmentation preview.

Grid-based slope filtering divides point cloud space into grid cells, finds the lowest point in each cell, computes local slopes, and rejects steep points. If the approximate ground level is known, an adaptive slope threshold can be used to improve segmentation accuracy.

3D Point Cloud Pen

The Point Cloud Pen is a versatile tool designed for direct point-level editing in 3D space.

You can use it in two main ways:

As an editing tool — to add or remove points from an existing point cloud object.

As a creation tool — to define and create a new object.

This makes the Point Cloud Pen tool especially useful for refining segmentations, fixing noisy detections, or manually annotating small or complex areas within a scene.

3D Cuboid Tracking

The 3D Cuboid Tracking tool allows you to automatically propagate annotations from one frame to the next. You can choose to track:

  • A single selected object, or

  • All objects in the current scene (if no object is selected)

Steps to use the tool:

  1. Select the target(s)

    • To track one specific object, simply select it in the scene.

    • To track all annotated objects, make sure no object is selected in the current frame.

  2. Open tracking settings

    • Click the arrow icon on the Track All on Screen button (if no object is selected), or on the Track Selected button (if one or more objects are selected).

    • In the settings popup choose how many frames the annotations should be propagated to. Select the direction: forward, backward, or both.

  3. Run the tracking

    • Click the main Track All on Screen or Track Selected button to start tracking.

    • The annotation propagation process will be visualized on the timeline.

    • The progress percentage will be shown on the button itself.

    • When it reaches 100%, the tracking is complete.

Unlike learning-based approaches, the 3D AI Assistant focuses on calculating the offset between neighboring point clouds using Point Cloud Registration Algorithms. It does not require any additional training to track 3D objects across unseen point cloud sequences.

Point Cloud Registration Algorithms are designed to find the transformation that aligns a pair of point clouds—originally located in different coordinate systems—into a shared coordinate space.

Below is a visualization of two neighboring point clouds displayed in the same scene before applying registration: you can clearly observe a spatial shift between them.

After applying a Point Cloud Registration Algorithm, we obtain a transformation matrix that can be used to align the source point cloud with the target point cloud.

By applying this transformation to the source point cloud, the spatial shift between the source and target is minimized, resulting in much better alignment.

2D to 3D Projection

The photo context panel is now an interactive part of the 3D labeling workspace.

You can annotate context images directly using standard image labeling tools. These annotations are automatically synchronized with the 3D space and become part of the same object instance. 2D and 3D annotations now coexist at the same level — edits or creation in one view are instantly reflected in the other. This improves labeling precision and scene understanding, especially when certain features are more visible in 2D.

The photo context panel is now an interactive part of the 3D labeling workspace.

You can annotate context images directly using standard image labeling tools. These annotations are automatically synchronized with the 3D space and become part of the same object instance. 2D and 3D annotations now coexist at the same level — edits or creation in one view are instantly reflected in the other. This improves labeling precision and scene understanding, especially when certain features are more visible in 2D.

Let’s walk through how to use each image annotation tool:

  • Bounding Box Tool

    We’ll start with the Bounding Box Tool:

    1. Activate the image window by clicking directly on a photo context image.

    2. In the left sidebar, select the Bounding Box Tool. If you don’t have a class created yet for this geometry type, a modal window will open — configure and create a new class, then close the modal.

    3. Draw a bounding box around the desired object in the image window. A rectangular shape (2D mask) will appear and be added to the Definitions panel and the timeline.

    4. Click the arrow icon on the Auto Labeling button and select Create 3D Objects from 2D Objects on Camera. A new 3D cuboid will be generated based on your 2D annotation, along with a new 3D class linked to the original 2D class.

Note: In the tool settings, you can switch between filled or transparent rectangle display styles.

  • Polygon Tool

    The Polygon tool works similarly to other image annotation tools that support 2D-to-3D conversion. You can draw a polygon directly on the photo context image, and later convert it into a 3D object using the Auto Labeling option.

    As for the tool itself, you can hover over it in the 3D Point Clouds and Episodes labeling interface to see helpful tooltips. For example, you might see tips like...

    "When working with polygons, you can also create holes inside shapes. To do this, hold Shift and click to start a polygon hole. Holes can be edited just like regular polygons. To delete a hole, hover over it and press Delete."

  • Brush Tool

    The Brush tool includes a variety of settings. You can outline the target object on the image using the brush, and then use the Fill tool, which is nested inside the Brush tool.

    Instead of manually painting the interior, simply click inside the outlined area — the entire enclosed region will be filled automatically.

    You can also separate a part of an already drawn mask using the Brush tool. To split off a section of the mask, use the Split Polygon tool, which is located inside the Brush tool. This allows you to divide a single mask into separate segments directly on the image.

  • Smart Tool

    The steps for using the Smart Tool are the same as for the Bounding Box tool:

    1. Activate the image window by clicking on a photo context image.

    2. In the left sidebar, select the Smart Tool. If you don’t have a bitmap class created yet, a modal window will open — configure and create a new class of type bitmap, then close the modal.

    3. Draw the mask over the desired object using your mouse. The SmartTool will automatically detect the object shape and generate a bitmap mask. The new annotation will appear in the Definitions panel and on the timeline.

    4. Click the arrow icon on the Auto Labeling button and select Create 3D Objects from 2D Objects on Camera. A new 3D cuboid will be generated in the point cloud based on the 2D bitmap mask, and a corresponding 3D class will be created.

3D Point Cloud Geometric Features Analysis

Supervisely also has algorithms for 3D point cloud geometric features analysis (verticality, planarity, linearity, etc). For some domains, a decent prelabeling can be created based on this features. For example, points of poles and building tend to have high verticality scores, while ground points usually have low verticality scores:

Note: AI Assistant features are available only to Enterprise customers with the Point Cloud module enabled.

Timeline Support

A full timeline component has been added, similar to the one used in video annotation tools:

  • Enables navigation across sequential 3D point cloud frames (episodes).

  • Supports annotation and review of dynamic scenes (episodes) across frame sequences.

  • Provides a comprehensive overview of frame availability, object presence, and annotation density.

Modular and Resizable UI Layout

The new interface allows full layout customization:

  • Panels such as photo context, camera views, and definitions can be moved and docked anywhere.

  • Users can arrange the workspace to fit their own workflow and screen space.

  • This flexibility improves usability and efficiency during annotation.

Definitions Panel

The Definitions panel is now available in the 3D interface, as in image and video tools:

  • Provides quick access to classes, tags, tool settings, and object styles.

  • Helps manage large taxonomies and maintain consistency across projects.

Working with Tags

  1. To create a new tag, click the plus icon next to the Definitions panel in the top-right corner of the screen. From the drop-down menu, select Create Tag.

  2. A modal window will open where you can configure the tag settings. Specify the name, possible values, color, and other options, then click Create.

In 3D Point Cloud episodes, tags are associated only with individual objects.

To apply a tag to an object:

  1. Find the object in the Objects and Tags panel.

  2. Select it by clicking on it.

  1. After selecting the object, two tagging options will appear in the Definitions panel:

  • Global Tags on Object — if enabled, the tag will apply to this object across all frames/episodes where the object exists.

  • Frame Based Tags on Object — if enabled, the tag will apply only on the currently active frame (the one open in the selected viewport).

These options allow flexible tagging behavior depending on whether the attribute is persistent or specific to a certain moment in time.

Editing

To change the class of a selected object:

  1. Click Select Figure tool.

  2. Select the object in any of the view panels.

  3. In the Definition panel, in the row of the selected class, click the mini-icon with two arrows to change the class.

Settings Panel

In addition to repositioning view panels, the Settings panel provides advanced customization options — such as adjusting cuboid thickness, customizing class appearance, controlling point cloud display settings, toggling object IDs, and more.

Adjusting Point Size

For example, by default, point clouds are displayed with the smallest point size. However, in some cases, increasing the point size can improve visibility and make labeling easier.

You can adjust the point size in the Settings panel. Each Viewpoint can have its own individual point size setting, as shown in the illustration below.

Transferring Colors from Photo Context to 3D Point Clouds

The Color Mode setting enables the transfer of color information from photo context images onto your 3D point clouds and point cloud episodes.

To enable this feature:

  1. Go to the Settings tab.

  2. Scroll down to the Cloud Points section.

  3. Find the Color Mode setting.

  4. Click it — in the dropdown menu, you will see the following options:

    • Z Code Height (default) — uses a gradient based on point height (Z coordinate).

    • RGB — displays points using their original RGB values (if available).

    • Distance From Center — colors points based on their distance from the scanning device.

    • Camera Device — transfers real image colors from the photo context to the 3D point cloud.

When Camera Device is selected, colors from the photo context are projected onto the 3D points across all frames of a point cloud episode, not just the current one.

This makes it easier to visually inspect and annotate the scene with realistic color information, especially when working with multi-frame episodes.

To align your 3D perspective view with the photo context, click the small camera icon labeled Match Camera Position in the top-right corner of the photo context panel. This will automatically adjust the 3D perspective to match the exact camera position of the photo. As a result, you'll be able to clearly see how the photo has been projected onto the point cloud in the Perspective view.

When the Move tool is activated:

  • All viewports except Perspective:

    • Move the scene by holding left or right mouse button.

  • Perspective viewport:

    • Right mouse button — pan the scene.

    • Left mouse button — rotate the scene.

    • Mouse scroll — zoom in/out.

Additionally, navigation inside the Perspective Viewport is also available using keyboard shortcuts, as shown in the illustration below.

When the Select tool is activated:

  • All viewports except Perspective:

    • Move the scene only by holding the right mouse button.

  • Perspective viewport:

    • Navigation works the same as in Move tool mode:

      • Right mouse button — pan.

      • Left mouse button — rotate.

      • Mouse scroll — zoom.

Hotkeys

To work faster and more efficiently, explore the list of available hotkeys in the labeling tool.

Hotkeys let you:

  • Quickly switch between tools (like Select, Move, Cuboid, Brush, etc.)

  • Speed up editing actions (copy, paste, delete, undo, redo)

  • Add and remove tags, change tag values.

Using keyboard shortcuts helps reduce mouse clicks and saves time during large-scale annotation tasks.

You can always view the full list of hotkeys by clicking the Hotkeys button in the top-right corner of the tool interface.

Import and Export of 3D Point Clouds

Supervisely provides flexible tools for importing and exporting 3D point clouds, including annotations and related images (e.g., photo context images), in various formats.

For a general overview, see the Import Overview page.

By default, AutoImport automatically detects and supports the following formats out of the box:

AutoImport supports a wider range of formats than individual apps and does automatic format detection, which makes it the recommended method for most users.

However, for more control or special cases, you can use dedicated Supervisely Apps to import point clouds from specific formats such as KITTI, ROS bag, PLY, and more.

Similarly, you can export your labeled point cloud data into various formats using standard Supervisely Export Apps. These apps support exporting annotations, projects, or specific point cloud formats including KITTI 3D, ROS Bag, and others.

You can find all available import and export apps in the Import → Pointclouds and Export → Pointclouds categories in the Supervisely Ecosystem.

For more details about Supervisely's native format for 3D point cloud episodes, see the Supervisely Point Cloud Episode Annotation Format.

Summary

The updated interface for 3D Point Cloud annotation combines powerful capabilities:

  • Integrated 2D and 3D annotation tools

  • Time-based navigation and frame control

  • Modular UI layout with dockable panels

  • Built-in AI Assistant for autolabeling, tracking, and segmentation

It offers a complete workspace for multi-modal annotation with high accuracy and scalability. Whether working with static point clouds or dynamic 3D sequences, the new tool provides clarity, control, and performance required for modern annotation workflows.

Note: The older version of the 3D Point Cloud tool remains available under legacy status.

  • Users can switch back using the Switch to Legacy Tool button.

  • Legacy version has a static layout and lacks support for definitions, timeline, and 2D–3D synchronization.

  • Further development will focus solely on the new interface.

Last updated

Was this helpful?
